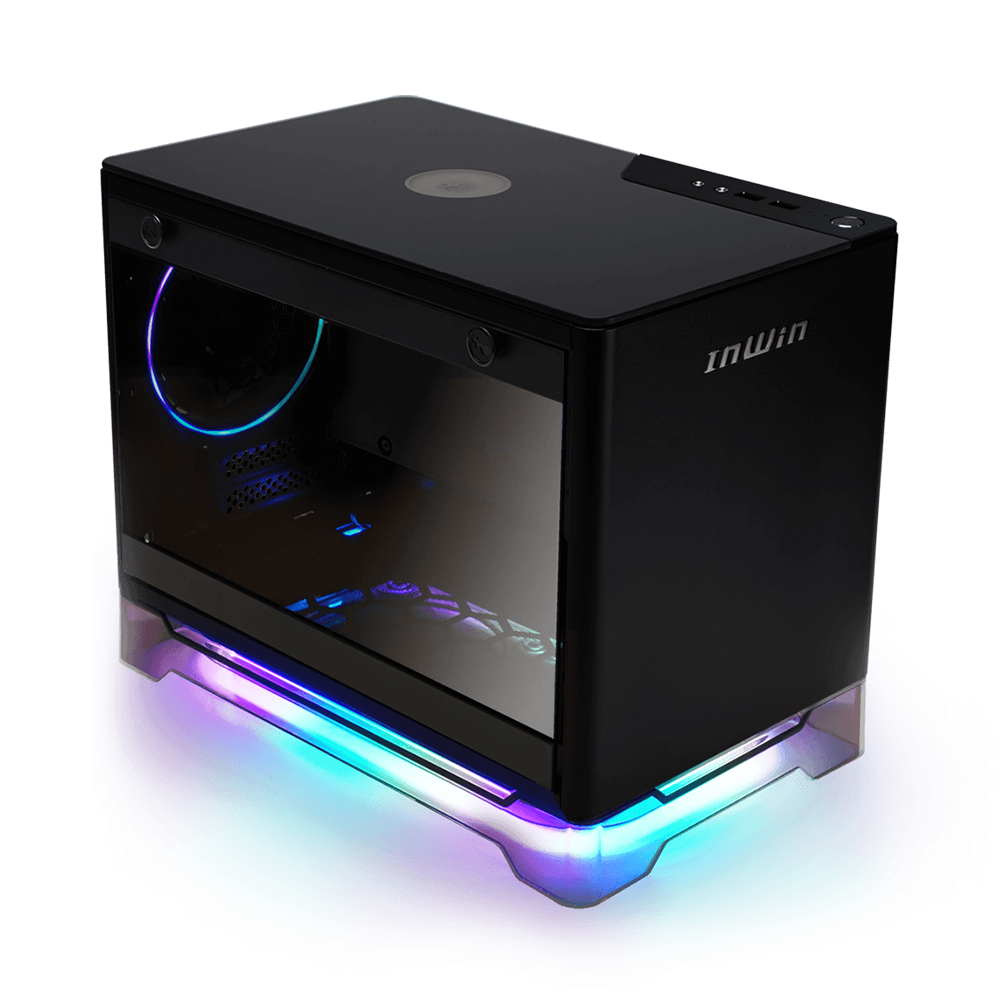

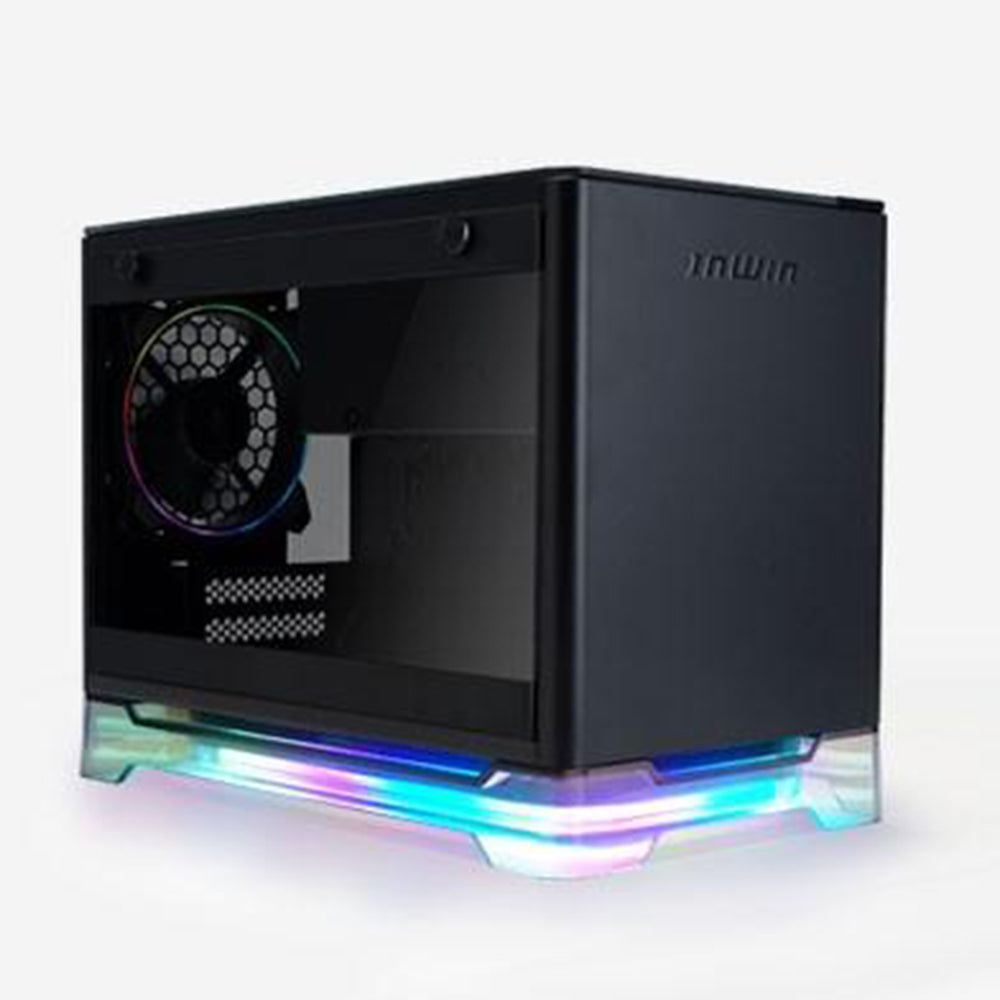

InWin A1 PLUS System Unit Chassis
|
Model
|
A1 PLUS
|
|
| Case Size | Mini-ITX Tower | |
| Material | SECC, Tempered Glass | |
|
M/B Form Factor
|
E-ATX | |
| ATX | ||
| Micro-ATX | ||
| Mini-ITX | ● | |
|
External Drive Bays
|
5.25" | |
| 3.5" | ||
|
Internal Drive Bays
|
5.25" | |
| 3.5" | ||
| 3.5"/2.5" | ||
| 2.5" | 2 | |
| Power Supply | ATX 12V / PSII | X (with 650W 80+ gold psu) |
| USB 3.0 / 2.0 | 2/0 | |
| HD Audio | ● | |
|
Thermal Solution
|
Air Cooling | Top: 120mm Fan x 1 Rear: 120mm Fan x 1 Bottom: 120mm Fan x 2 |
| Water Cooling | ||
| CPU Heatsink | CPU Heatsink Height : 160mm | |
| I/O Expansion Slots | 2 SIRIUS FAN INCLUDED | |
| Dimension(HxWxD) | 273mm x 210mm x 355.55mm (10.7" x 8.2" x 14") | |
