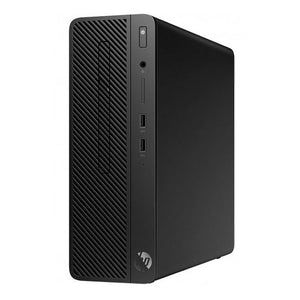

HP 280 G3 SFF PC

HP 280 G3 SFF PC

Operating systems

Specification
Description
Preinstalled (Windows)
Windows 10 Pro 64
Windows 10 Home 64
NOTE:
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 automatic updates are always enabled. ISP fees may apply and additional requirements may apply over time for updates.
Pre-installed (other)
FreeDOS 1.2

Processors

Specification
Description
Intel Celeron G4900 Dual core (Coffee Lake-S)
54 W
3.1 GHz
2400 MHz
2 MB cache
2 cores
Intel Pentium G5400 Dual core (Coffee Lake-S)
54 W
3.7 GHz
2400 MHz
4 MB cache
2 cores
Intel Core i3-8100 Quad core (Coffee Lake-S)
65 W
3.6 GHz
6 MB cache
4 cores
Intel Core i5-8400 (Coffee Lake-S)
65 W
2.8 GHz
2666 MHz
Turbo boost technology up to 4 GHz
9 MB cache
6 cores
Intel Core i5-8500 (Coffee Lake-S)
65 W
3.0 GHz
2666 MHz
Turbo boost technology up to 4.1 GHz
9 MB cache
6 cores
Intel Core i7-8700 (Coffee Lake-S)
65 W
3.2 GHz
2666 MHz
Turbo boost technology up to 4.6 GHz
12 MB cache
6 cores
Chipset
Intel H370 chipset

Graphics

Specification
Description
Integrated
Intel UHD Graphics 630 (integrated on Core i7/i5/i3 processors)
Intel UHD Graphics 610 (integrated on Pentium G5400 and Celeron G4900)
NOTE:
High-definition (HD) content required to view HD images.
Integrated Intel Wi-Di software is available on select models only and requires separately purchased projector, TV, or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, TV, or computer monitor via a standard VGA, HDMI cable, also sold separately.
Discrete
AMD Radeon R7 430 2 GB PCIe x16
NVIDIA GeForce GT730 1GB PCIe x8 HDMI
NVIDIA GeForce GT730 2GB PCIe x8 DP

Memory

Specification
Description
Form factor
Small form factor
Type
DDR4-2666 (Transfer rates up to 2666 MT/s)
Maximum
32 GB capacity
Number of slots
(2) DIMM
Configurations
4 GB total system memory (4 GB x 1)
8 GB total system memory (4 GB x 2)
8 GB total system memory (8 GB x 1)
16 GB total system memory (8 GB x 2)
16 GB total system memory (16 GB x 1)

Storage

Specification
Description
Hard drives
500 GB 7200 RPM SATA hard disk drive
1 TB 7200 RPM SATA hard disk drive
2 TB 7200 RPM SATA hard disk drive
Solid state drives
128 GB, SATA 3 (6.0 Gb/s), 6.35 cm (2.5 in), TLC SSD
256 GB, SATA 3 (6.0 Gb/s), 6.35 cm (2.5 in), TLC SSD
128 GB M.2 2280 PCIe NVMe (Value)
256 GB M.2 2280 PCIe NVMe (Value)
SD card reader
SD/SDHC/SDXC SD card reader (card sold separately)
Optical disc drives
HP 9.5 mm DVD-ROM drive
HP 9.5 mm DVD Writer drive
NOTE:
Optical drives are optional or add-on features. Duplication of copyrighted material is strictly prohibited. Actual speeds might vary. Double layer media compatibility will widely vary with some home DVD players and DVD-ROM drives.

Audio/multimedia

Specification
Description
Type
Integrated Hi-Definition Audio
Realtek ALC3601
Front side Combo jack for supporing CTIA
Rear side Line-in/ Line-out/ Mic-in jacks
Integrated Webcam (optional) and Microphone
Integrated microphone array
Infrared (640 x 480) camera (optional)

Networking

Specification
Description
Ethernet (RJ-45)
Integrated
10/100/1000M GbE LAN
Wireless
Intel 802.11a/b/g/n/ac (1x1) WiFi and Bluetooth 4.2 Combo
NOTE:
Wireless access point and Internet service required and not included. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it might affect the ability of the device to communicate with other 802.11ac WLAN devices.

Ports/slots/bays

Specification
Description
Front in/out ports
(2) USB 3.1 Gen 1 ports
(1) Microphone/headphone combo jack
(1) Power button
(1) HDD LED light
Rear in/out ports
(1) RJ-45 network connection
(2) USB 3.1 Gen 1 (left)
(2) USB 2.0 (side)
(1) Serial port
(1) Audio mic in
(1) Audio link out
(1) Audio line in
(1) VGA (is covered up when discrete graphic card is configured on shipped machine)
(1) HDMI (is covered up when discrete graphic card is configured on shipped machine)
(1) Parallel port (optional)
Internal in/out ports
(1) PCIe x 16
(1) PCIe x 1
Slots
(1) M.2 PCIe x1 2230 (for WLAN)
(1) M.2 2280/2230 (for storage)
(1) Security lock slot
Bays
(1) 3.5 in or 2.5 in Hard Disc Drive bay
(1) 9.5 mm Slim-height bay (front: supporting an ODD) (optional)

Software/security

Specification
Description
Security and Protection
Mcafee LiveSafe
NOTE:
Free 1-year subscription of McAfee LiveSafe service included. Internet access required and not included. Subscription required after expiration.
ODD Playback and TV Tuners
Power Media Player 14 for HP with DVD (ODD SKU only)
NOTE:
Actual speeds might vary.
Movies
Netflix (Internet access required and not included)
App Stores and Content Purchasing
Amazon
Microsoft products
Buy Office (sold separately)
Other products
Dropbox
NOTE:
New Dropbox users are eligible to get 25 GB of Dropbox space free for 12 months from date of registration; Internet access required and not included.
HP Value Add software
HP ePrint Driver with JetAdvantage1
HP System Event utility
HP Documentation
HP Jumpstart
HP Recovery Manager PBR
HP Audio Switch
HP Support Assistant
BtB
HP Setup Integrated–OOBE
Security
For Windows 10, Trusted Platform Module (TPM) 2.0 (Infineon SLB9670)
NOTE:
TPM is not supported on machine pre-configured with FreeDOS. In same cases, machines pre-configured with Windows OS might ship with TPM turned off.
Common Criteria EAL4+ Certified
Security cable lock supported (sold separately)

Keyboards and pointing devices

Specification
Description
Keyboards
HP USB Keyboard
HP USB Business Slim Keyboard
Business Slim USB Antimicrobial Standalone Wired Keyboard (China)
No Keyboard option
Mice
HP Optical USB Mouse
HP USB Antimicrobial Mouse (China only)
Universal Wired Mouse USB
USB Hardened Mouse (India)
No Mouse option

Power supply

Specification
Description
Power supply
180 W
ENERGY STAR
ENERGY STAR Libra2 EPA90 (Gold) Full range 115 V/230 V
Operating voltage range
90 – 264 VAC
Rated voltage range
100 – 240 VAC
Rated line frequency
50/60 Hz
Operating line frequency
47 – 63 Hz
Rated input current
180 W for less than or equal to 2.3 A
DC output
+12.1 V
Current Leakage (NFPA 99: 2102)
Less than 500 microamps of leakage current at 120 Vac with the ground wire disconnected, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section 10.3.5.1.
Less than 100 microamps of leakage current at 120 Vac with the ground wire intact with normal polarity, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section 10.3.5.1.
Power supply fan
50* 20 mm (linear type)

Physical specifications

Specification
Description
Chassis (H x W x D)
296 x 270 x 95 mm (11.65 x 10.63 x 3.74 in)
Weight
4.28 kg (9.43 lbs)

Environmental specifications

Specification
Description
Temperature range
Operating: 0° to 40° C (32° to 104° F)*
Non-operating: -30° to 60° C (-22° to 140° F)
NOTE:
Operating temperature is de-rated 1° C per 300 m (984 ft) to 3000 m (9842 ft) above sea level, no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.
Relative humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum altitude (unpressurized)
Operating: 3048 m (10,000 ft)
Non-operating: 9144 m (30,000 ft)

Certifications

Specification
Description
Certifications and declarations
CECP
ENERGY STAR certified
EPEAT Silver (registered wherever applicable; registration varies by country)
CEL
FCC
UL
RoHS
CCC
CE
SEPA
