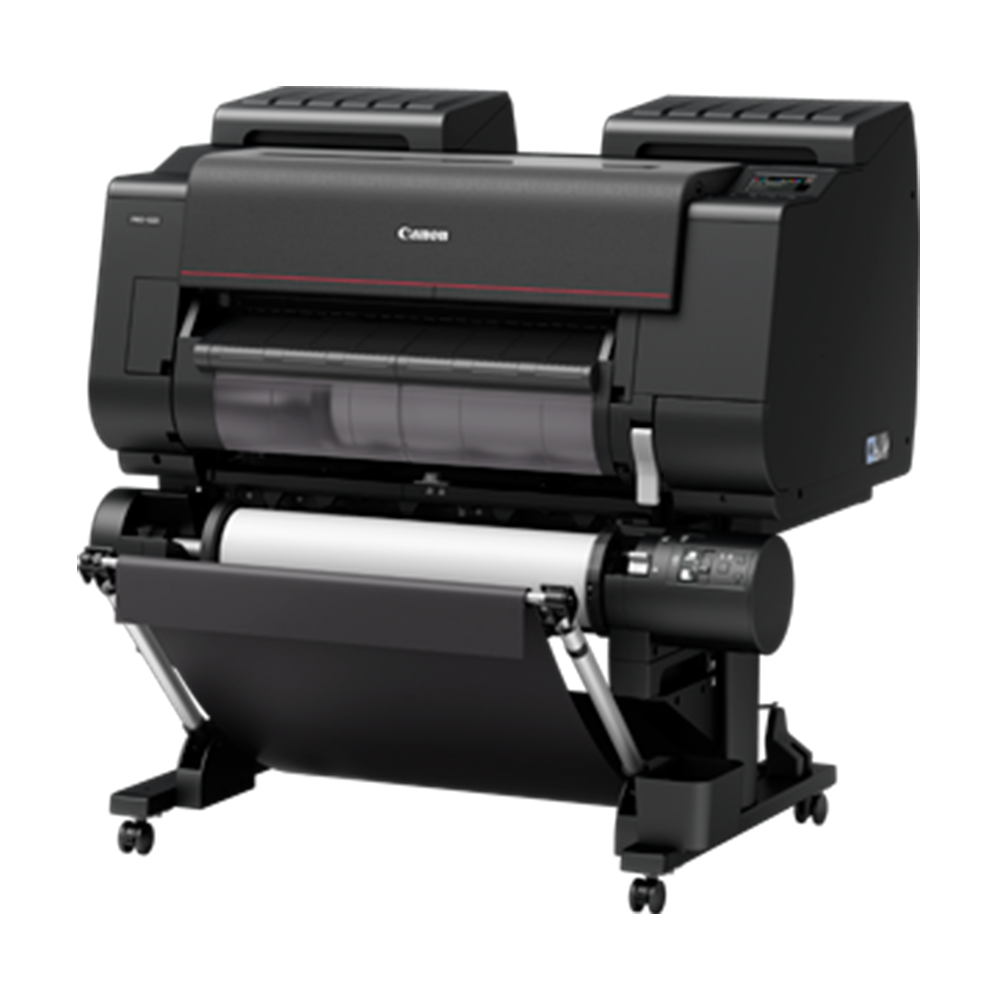

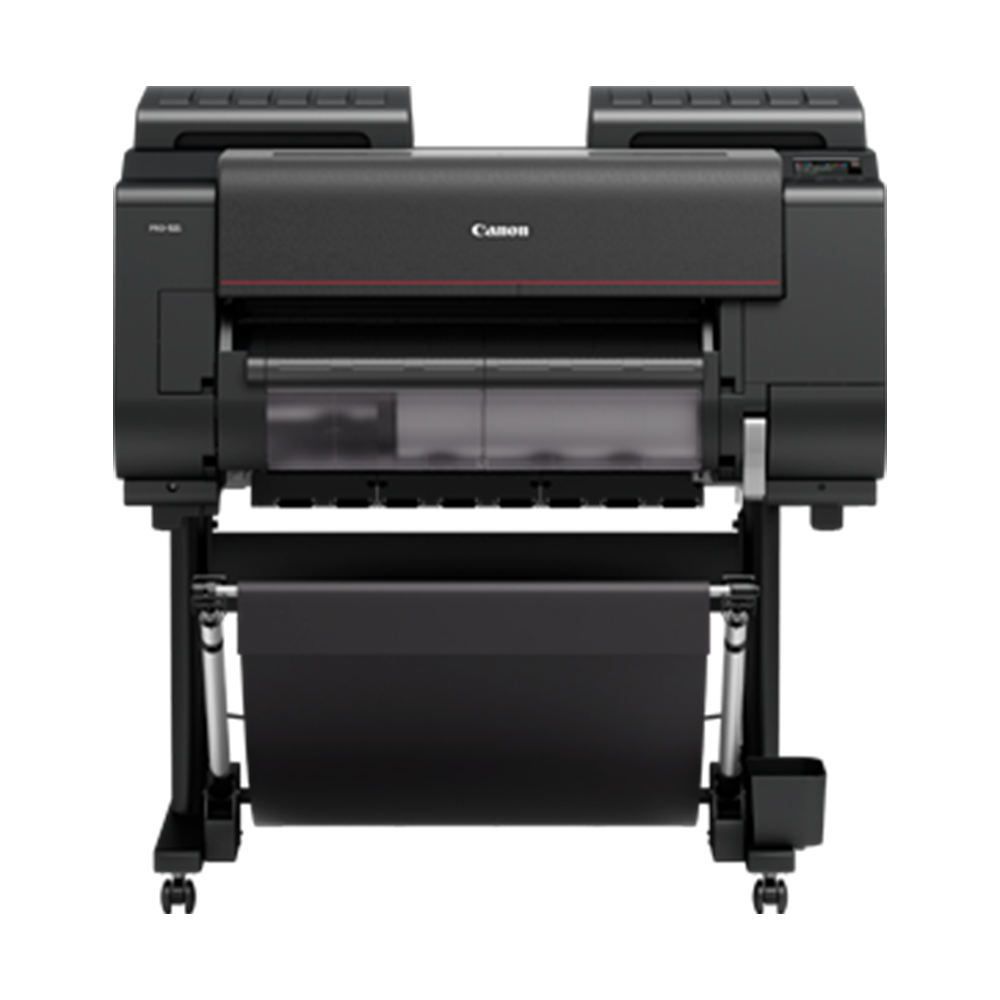

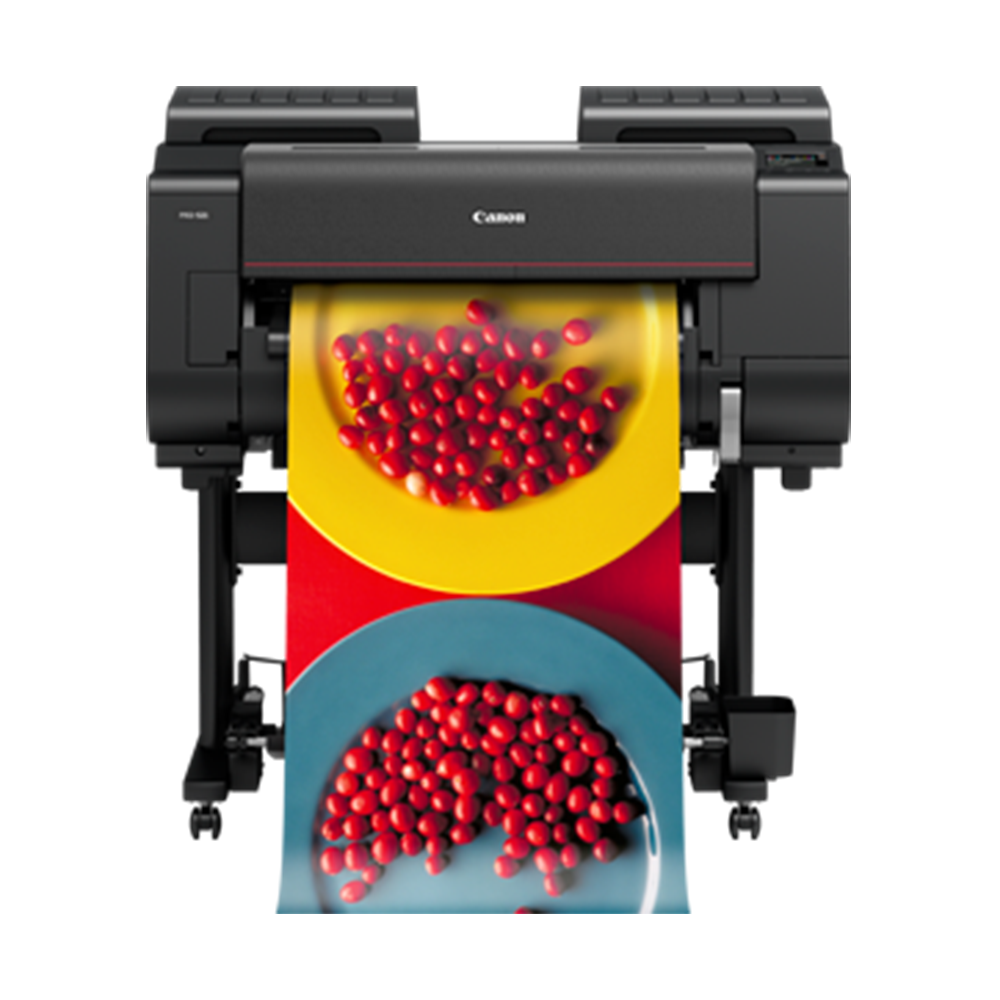

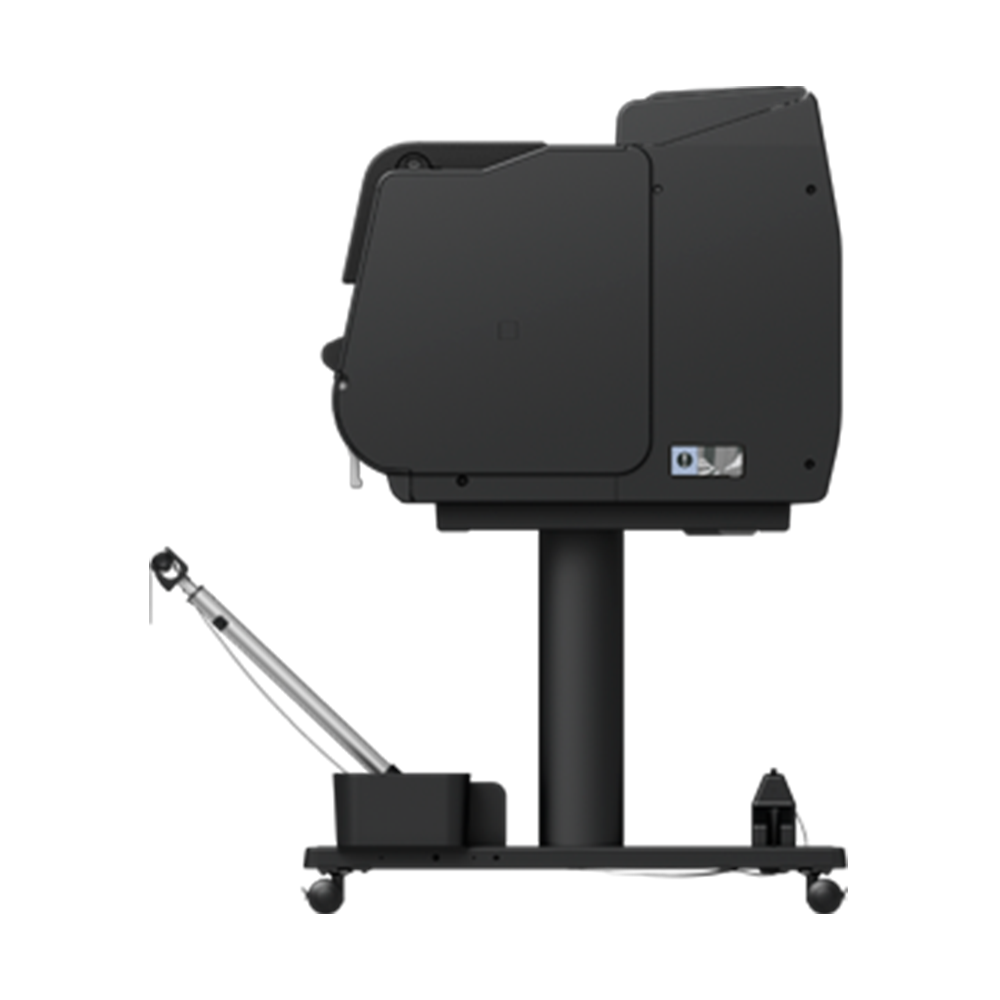

Canon imagePROGRAF PRO-521 with Printer Stand SD-21

Printer Type

12-Colour, 24" / 610 mm

Number of Nozzles

18,432 nozzles (1536 nozzles x 12 colours)

Maximum Print Resolution

2400 x 1200 dpi

Nozzle Pitch

600 dpi x 2

Line Accuracy

±0.1 % or less
User calibration is required.
Printing environment and media must match those used for calibration.
Required Paper: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only.

Minimum Ink Droplet Size

4 pl

Ink Capacity

Sales Ink: 160 ml / 330 ml / 700 ml
Bundled Starter Ink: 160 ml

Ink Type

Pigment Ink: Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue, Chroma Optimizer

Printer Language

SG Raster (Swift Graphic Raster)
PDF (Ver. 1.7)
JPEG (Ver. JFIF 1.02)

Standard Interfaces (Built-in)

USB A Port:
USB Memory (Direct Print)

USB B Port:
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer
Series B (4 pins)

Gigabit Ethernet:
IEEE 802.3 10 base-T
IEEE 802.3u 100 base-TX/Auto Negotiation
IEEE 802.3ab 1000 base-T/Auto Negotiation
IEEE 802.3x Full Duplex
SNMP
Canon-MIB
HTTP
TCP/IP (IPv4/IPv6)

Wireless LAN:
IEEE802.11n/g/b
WEP (64/128bit)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Memory (Standard)

3 GB

Hard Disk

500 GB (Encrypted HDD)

Plain Paper (A1)

58 sec (Level 5)
1 min 38 sec (Standard)
3 min 11 sec (High)

Heavyweight Coated Paper HG (A1)

1 min 38 sec (Standard)
3 min 11 sec(High)
4 min 44 sec (Highest)

Glossy Photo Paper HG 170 (A1)

3 min 11 sec (Standard)
5 min 02 sec (High)
8 min 21 sec (Highest)

Media Feed and Output (Single Roll)

Roll Paper: Front Load, Front Output
Added Roll Paper: Front Load, Front Output (Optional)

Cut Sheet: Front Load, Front Output
(Manual Feed using Media Locking Lever)

Media Width (Roll / Cut Sheet)

152.4 ~ 610 mm

Media Thickness (Roll / Cut Sheet)

0.07 ~ 0.8 mm

Minimum Printable Length

Roll Paper:
101.6 mm (exclude Cloth and Canvas media)
200 mm (Cloth and Canvas media)

Cut Sheet: 203.2 mm

Maximum Printable Length

Roll Paper: 18 m
(varies according to the OS and application)

Cut Sheet: 2133.6 mm (with stand)

Maximum Media Roll Outer Diameter

170 mm or less

Borderless Printing Width (Roll Only)

Recommended:
515 mm (B2),  594 mm (A1), 10", 14", 17", 24"

Printable:
257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 6", 8", 12", 16", 20", 22", 300 mm, 500 mm, 600 mm and custom roll width (154.2 - 610 mm)

Physical Dimensions (W x D x H) & Weight
(Include roll holder set, exclude ink and print head)

Main Unit + Stand + Basket:
Approx. 1110 × 984 × 1168 mm (Basket Open)
Approx. 1110 × 766 × 1168 mm (Basket Closed)
Approx: 102 kg

Main Unit + Roll Unit + Stand + Basket:
Approx. 1110 × 984 × 1168 mm (Basket Open)
Approx. 1110 × 766 × 1168 mm (Basket Closed)
Approx: 119 kg

Packaged Dimensions (W x D x H) & Weight

Main Unit + Pallet:
Approx. 1324 x 902 x 1042 mm
Approx: 124 kg

Stand + Basket:
Approx. 1111 x 797 x 223 mm
Approx: 23 kg

Roll Unit:
Approx. 1244 x 562 x 461 mm
Approx: 26 kg

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption

Printing: 93 W or less
Sleep Mode: 2.0 W or less
Power Off: 0.3 W or less

Operating Environment

Temperature: 15 ~ 30°C
Humidity: 10 ~ 80 % RH (no dew condensation)

Acoustic Sound

[Acoustic Pressure]
Operation: Approx. 46 dB (A)
(Glossy Paper - Image; Print Priority - Standard)

Standby: Approx. 35 dB (A) or less

[Acoustic Power]
Standard Print Operation: 64 dB or less
(Glossy Paper - Image; Print Priority - Standard)
(Measured using ISO 7779 standard)

Printer Stand (Required)

SD-21

Roll Unit (Optional)

RU-23

2"/3" Roll Holder (Optional)

RH2-29
