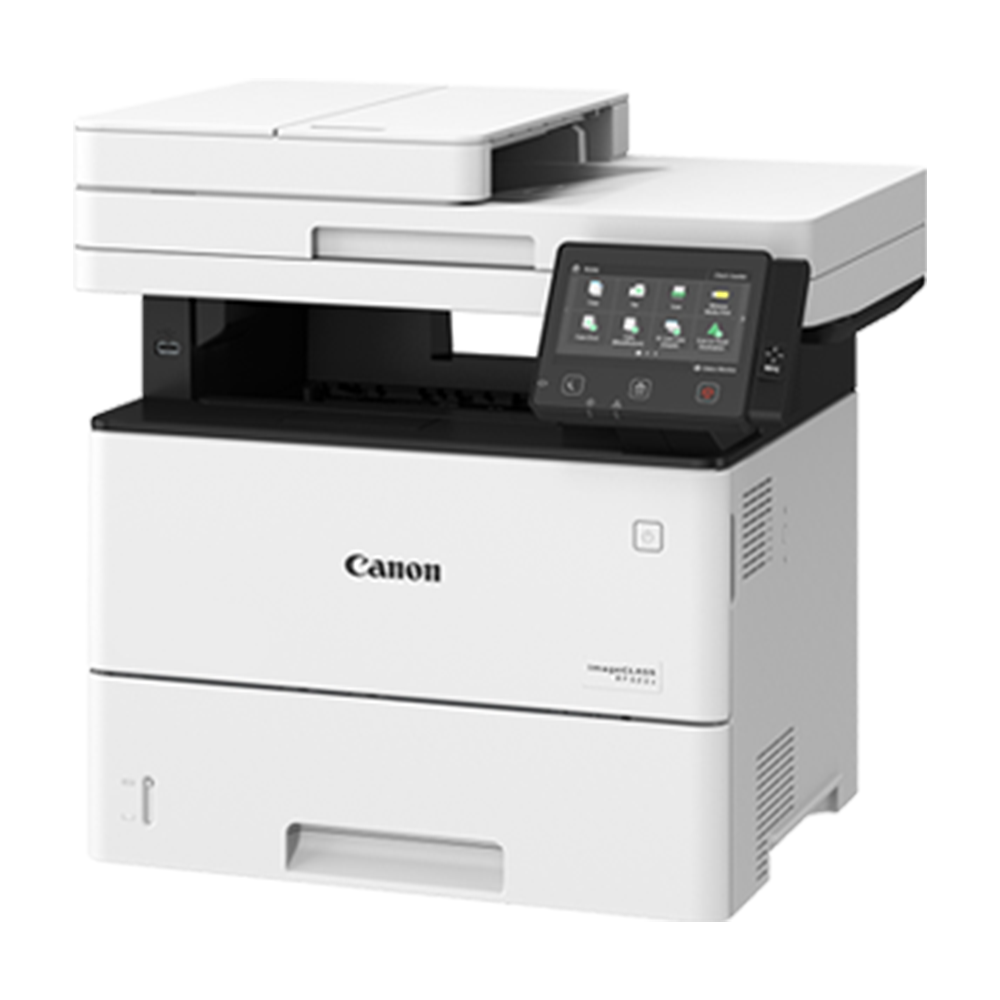

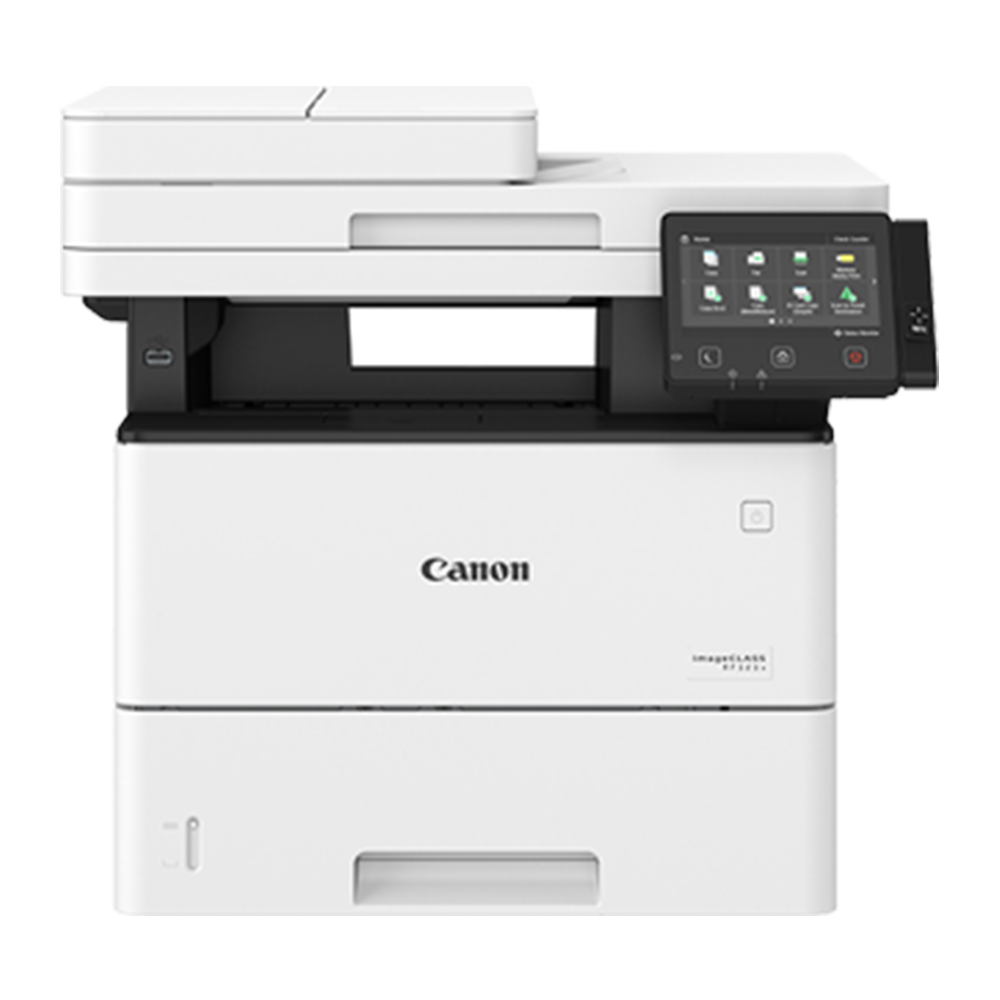

Canon imageCLASS MF525x Monochrome MFP Laser Printer and Scanner
Smarter way to improve office productivity and work efficiency. Equipped with innovative solution in a robust, compact design, the MF525x integrates seamlessly into busy offices and workgroups.
- Print, Scan, Copy, Fax
- Print Speed (A4): Up to 43ppm
- Recommended monthly print volume: 2,000 - 7,500 pages
- FPOT: 6.2secs. (A4)
- Max. paper input capacity: Up to 2,300 sheets
- Print Resolution: Up to 1200 x 1200dpi (equivalent)
| Printing Method | Monochrome Laser Beam Printing | |
| Print Speed | A4 | 43ppm |
| Letter | 45ppm | |
| A5(*¹) | 65ppm | |
| Print Resolution | 600 x 600dpi | |
| Print Quality with Image Refinement Technology | 2,400 (eq.) x 600dpi 1,200 (eq.) x 1,200dpi (eq.) |
|
| Warm-Up Time (From Power On) | 14sec. or less | |
| First Print Out Time (FPOT) | A4 | Approx. 6.2sec. |
| Letter | Approx. 6.2sec. | |
| Recovery Time (From Sleep Mode) | 4.0sec. or less | |
| Print Language | UFR II, PCL 6 (93 fonts), PostScript 3 | |
| Auto Duplex Print | Standard | |
| Available Paper Size for Auto Duplex Print | A4, Legal, Letter, Foolscap, Indian Legal | |
| Print Margins | 5mm - top, bottom, left and right (Envelope: 10mm) | |
| Print Features | Poster, Booklet, Watermark, Page Composer, Toner Saver | |
| Supported File Format for USB Direct Print | Supported File Format: JPEG, TIFF, PDF | |
| Copy | ||
| Copy Speed | A4 | 43ppm |
| Letter | 43ppm | |
| Copy Resolution | 600 x 600dpi | |
| First Copy Time (FCOT) | A4 | Approx. 6.4sec. |
| Letter | Approx. 6.3sec. | |
| Maximum Number of Copies | Up to 999 copies | |
| Reduce / Enlargement | 25 - 400% in 1% increments | |
| Copy Features | Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy | |
| Scan | ||
| Scan Resolution | Optical | Platen glass: up to 600 x 600dpi Feeder: up to 300 x 300dpi |
| Driver Enhanced | Up to 9,600 x 9,600dpi | |
| Scan Type | Colour Contact Image Sensor | |
| Maximum Scan Size | Platen glass | up to 215.9 x 355.6mm |
| Feeder | up to 215.9 x 355.6mm | |
| Scan Speed(*²) | 1-Sided: 37ipm; 2-Sided: 70ipm | |
| Color Depth | 24-bit | |
| Pull Scan | Yes, USB and Network | |
| Push Scan (Scan To PC) with MF Scan Utility | Yes, USB and Network | |
| Scan to USB (via USB Host 2.0) | Yes | |
| Scan to Cloud | MF Scan Utility | |
| Scan Driver Compatibility | TWAIN, WIA | |
| Send | ||
| Send Method | SMB, Email, FTP, iFAX Simple | |
| Color Mode | Full Colour, Grayscale, Monochrome | |
| Scan Resolution | 300 x 600dpi | |
| File Format | JPEG, TIFF, PDF, Compact PDF, PDF (OCR) | |
| Fax | ||
| Modem Speed | Up to 33.6 Kbps | |
| Fax Resolution | Up to 406 x 391dpi | |
| Compression Method | MH, MR, MMR, JBIG | |
| Memory Capacity (*³) | Up to 512 pages | |
| Favourite Dials (in address book) | 19 dials | |
| Speed Dials(Coded Dials) | Up to 281 dials | |
| Group dials / Destinations | Max. 199 dials / Max. 199 destinations | |
| Sequential Broadcast | Max. 310 destinations | |
| Receive Mode | Fax Only, Manual, Answering, Fax / Tel Auto Switch | |
| Memory Backup | Permanent fax memory backup. ( Backup with flash memory) | |
| Fax Features | Fax Forwarding, Dual Access, Remote Reception, PC Fax (Transmission only), DRPD, ECM, Auto Redial, Fax Activity Reports, Fax Activity Results Reports, Fax Activity Management records | |
| Transmission Time | Approx. 2.6sec. | |
| Paper Handling | ||
| Duplex Auto Document Feeder (DADF) | 50 sheets (80g/m²) | |
| Available Paper Size for DADF | A4, B5, A5, A6, Letter, Legal, Statement (min. 105 x 128mm to max. 215.9 x 355.6mm) |
|
| Paper Input (Based on 80g/m²) |
Standard Cassette |
550 sheets |
| Multi-Purpose Tray | 100 sheets | |
| Optional Paper Feeder | 550 sheets x 3 | |
| Maximum Paper Input Capacity | 2,300 sheets | |
| Paper Output | 250 sheets | |
| Paper Size | Cassette | A4, B5, A5, A6, Legal, Letter, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal Custom (min. 105.0 x 148.0mm to max. 215.9 x 355.6mm) |
| Multi-Purpose Tray | A4, B5, A5, A6, Legal, Letter, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card Envelope: COM10, Monarch, C5, DL Custom (min. 76.2 x 127.0mm to max. 215.9 x 355.6mm) |
|
| Paper Types | Plain, Heavy, Recycled, Colour, Label, Postcard, Envelope | |
| Paper Weight | ADF | 50 to 105g/m² |
| Cassette | 52 to 120g/m² | |
| Multi-Purpose Tray | 52 to 199g/m² | |
| Connectivity & Software | ||
| Standard Interfaces | Wired | USB 2.0 High Speed, 10Base-T / 100Base-TX / 1000Base-T |
| Wireless | Wi-Fi 802.11b/g/n (Infrastructure mode, WPS easy Setup, Direct Connection) |
|
| Near Field Communication (NFC) | Yes (Passive) | |
| Network Protocol | LPD, RAW, WSD-Print (IPv4, IPv6) | |
| Scan | Email, SMB, WSD-Scan(IPv4, IPv6) | |
| TCP/IP Application Services | Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4, IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) | |
| Management | SNMPv1, SNMPv3 (IPv4, IPv6) | |
| Network Security | Wired | IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC |
| Wireless | WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)) | |
| One-Push Wireless Configuration | Wi-Fi Protected Setup (WPS) | |
| Other Features | Department ID, Secure Print, Application Library | |
| Mobile Solution | Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint™, Mopria® Print Service | |
| Address Book | LDAP | |
| Compatible Operating Systems(*4) | Windows® 10, Windows® 8.1, Windows® 8, Windows® 7, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008, Mac® OS X 10.7.5 & up(*5), Linux(*5) |
|
| Software Included | Printer driver, Fax driver, Scanner driver, MF Scan Utility, Toner Status | |
| General | ||
| Device Memory | 1GB | |
| LCD Display | WVGA Colour LCD 5.0" Touch Screen Display | |
| Dimensions (W x D x H) | 494 x 464 x 452mm | |
| Weight | 19.0kg | |
| Power Consumption | Maximum | 1,380W or less |
| Average (During Operation) | Approx. 680W | |
| Average (During Standby) | Approx. 17W | |
| Average (During Sleep) | Approx. 0.9W (USB / LAN / Wi-Fi) | |
| Noise level(*6) | During Operation | Sound Pressure Level: 58dB Sound Power Level: 6.8B |
| During Standby | Sound Pressure Level: 29dB Sound Power Level: 4.2B |
|
| Operating Environment | Temperature: 10 - 30°C Humidity: 20 - 80% RH (no condensation) |
|
| Power Requirements | AC 220 - 240V (+/-10%), 50 / 60Hz (+/-2Hz) | |
| Toner Cartridge(*7) | Standard | Cartridge 041: 10,000 pages (bundled: 10,000 pages) |
| High | Cartridge 041 H: 20,000 pages | |
| Monthly Duty Cycle(*8) | 150,000 pages | |
| Optional Accessories | ||
| Paper Feeder | Paper Feeder PF-C1 (550 sheets) | |
| Barcode Printing | Barcode Printing Kit-E1 | |
| Attachment kit for NT-Ware Mi-Card | Mi-Card Attachment Kit-B1 | |
