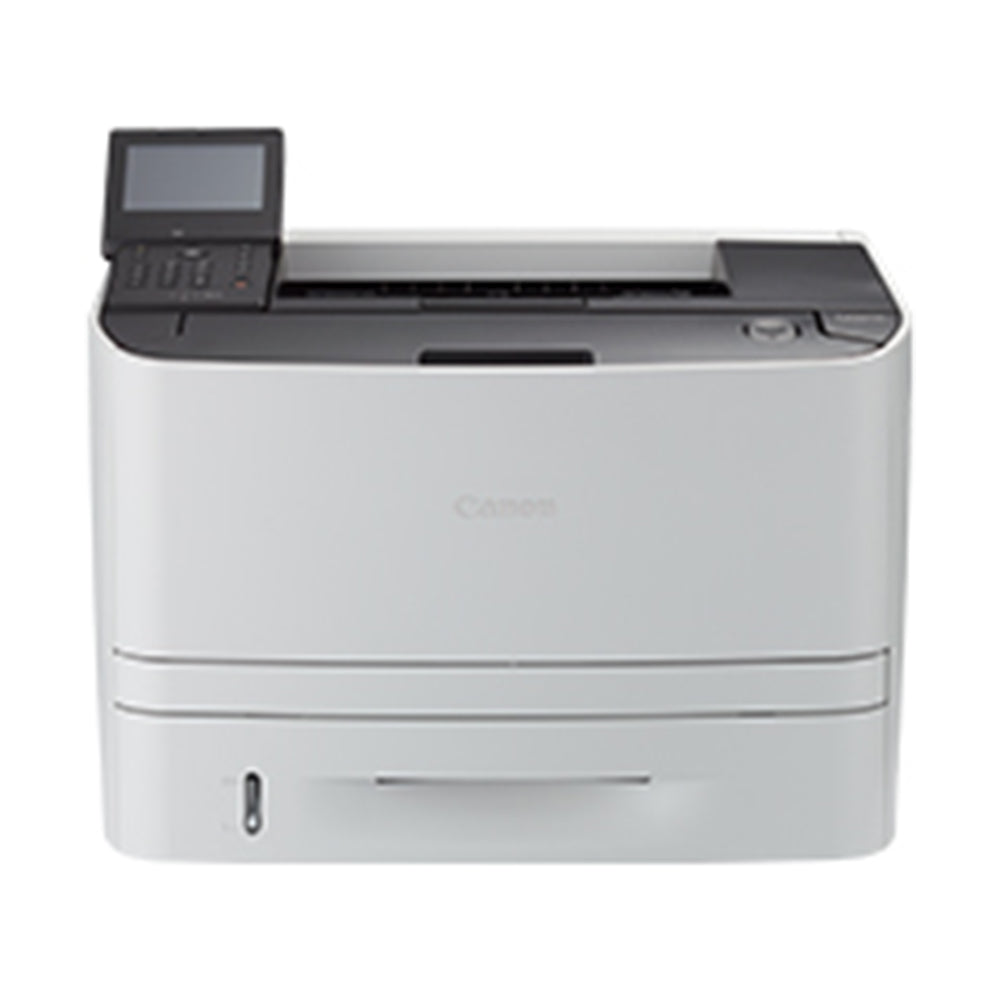

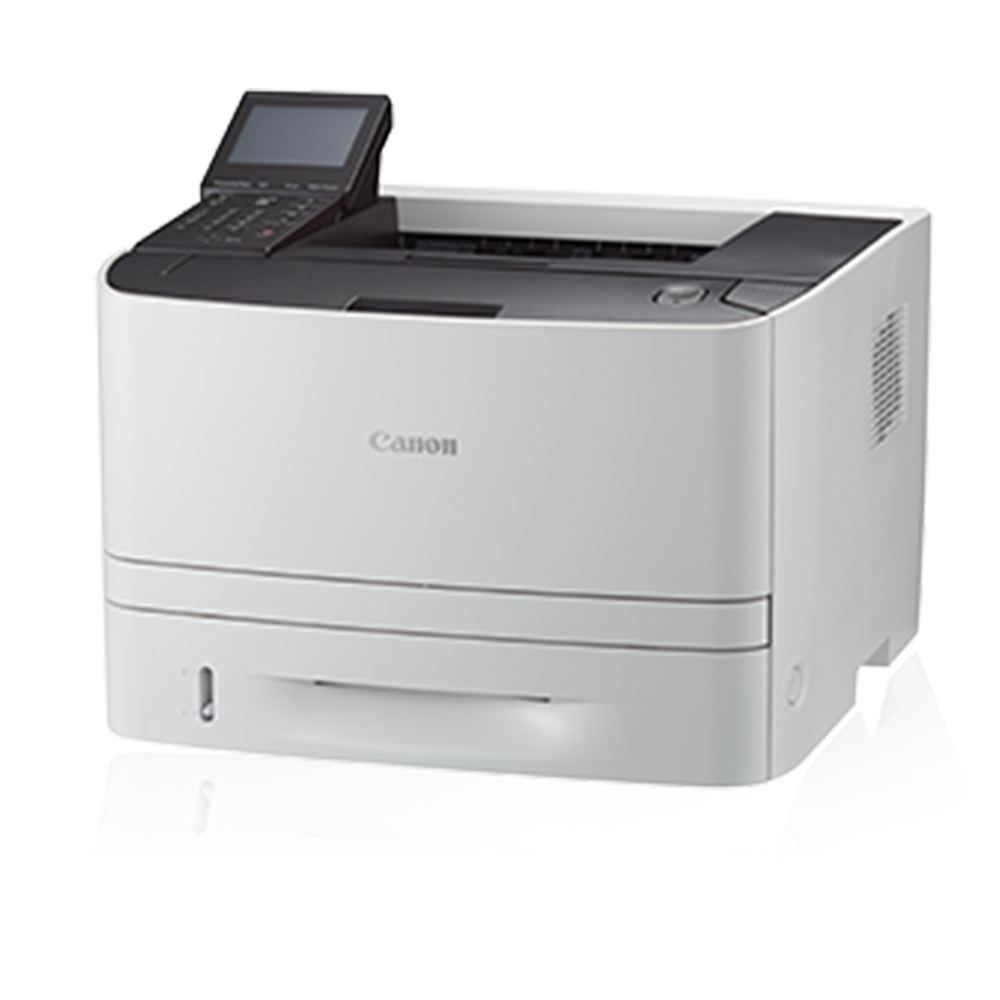

Canon imageCLASS LBP253x Monochrome Laser Printer
PRINTER ENGINE
Print speed
Single sided: Up to 33 ppm (A4)
Double sided: Up to 16.8 ipm (A4)
Printing method
Monochrome laser beam printing
Print quality
Up to 1200 x 1200 dpi
Print resolution
Up to 600 x 600 dpi
Warm-up time
Approx. 16 seconds or less from power on
First Page Out Time
Approx. 6 seconds
Recommended Monthly Print Volume
750 - 3,000 pages per month
Duty cycle
Max. 50,000 pages per month¹
Print margins
5 mm-top, bottom, left and right
Advanced printing features
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Touch & Print (NFC)
Google Cloud Print Ready
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
MEDIA HANDLING
Paper input (Standard)
250-sheet cassette
50-sheet multi-purpose tray
Paper input (Option)
500-sheet cassette
Paper output
150-sheet face down, 1 sheet face up
Media types
Plain paper, Recycled Paper, Heavy Paper,
Label, Envelope, Post card
Media sizes
Cassette (Standard and optional)
A4, B5, A5, A6, LGL, LTR, EXECUTIVE, STATEMENT, FOOLSCAP, 16K,
Custom sizes (Width: 105.0 to 215.9mm Length: 148.0 to 355.6mm)
Multi-purpose tray:
A4, B5, A5, A6, LGL, LTR, EXECUTIVE, STATEMENT, FOOLSCAP, 16K, Envelope COM-10, Monarch, DL, C5, Index Card,
Custom sizes (Width: 76.2 to 215.9mm Length: 127.0 to 355.6mm)
Media weights
Cassette (Standard and optional): 60 to 120 g/m²
Multi-purpose tray: 60 to 163 g/m²
Double sided printing
Automatic (Only A4/LTR/LGL)
GENERAL FEATURES
Power requirements
220-240V (±10%) 50/60Hz (±2Hz)
Power consumption
Maximum: Approx. 1150W or less
Active: Approx. 550W or less
Standby: Approx. 12.1W or less
Sleep: Approx.1W or less¹
Typical Electricity Consumption (TEC): 1.2kWh/week
Lot26 (http://www.canon-europe.com/For_Work/Lot26/index.aspx)
Noise level
Sound power¹:
Active: 70.6 dB
Standby: Inaudible
Sound pressure¹:
Active: 53 dB
Standby: Inaudible
Dimensions (W x D x H)
403 mm x 377 mm x 317 mm
Weight
Approx. 12.4 kg
Operating environment
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)
Control panel
8.9 cm LCD Colour Touch Screen
CONTROLLER
Processor Speed
525MHz
Memory
1GB
Printer Languages
UFRII (Ultra Fast Rendering), PCL5e, PCL6, Adobe® PostScript™
Fonts
93 PCL fonts, 136 PS fonts
Interface and connectivity
USB 2.0 High-Speed, 10BASE-T/100 BASE-TX/1000BASE-T, Wireless 802.11b/g/n, Wireless Direct Connection
Software and Printer Management
Remote User Interface (RUI),
SSID Tool,
Department ID Management,
Toner Status Tool,
iW Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
uniFLOW Compatibility with embedded uniFLOW Login Device Client
Operating Systems Compatibility
Windows® 10 / Windows® 8.1 / Windows® 8 / Windows® 7 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008 / Server® 2003 / Vista
Mac OS X version 10.5.8 & up
Linux¹/Citrix
CONSUMABLES
All-in-One cartridges
Standard: Cartridge 719 (2,100 pages¹)²
High yield: Cartridge 719 H (6,400 pages¹)²
ACCESSORIES/ OPTIONS
Items
PAPER FEEDER PF-44 (500-sheet cassette)
