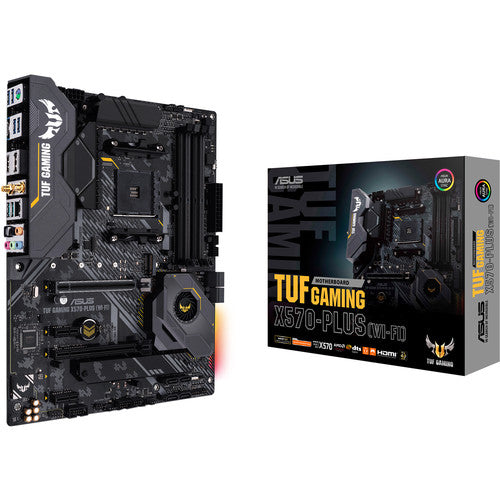

ASUS TUF GAMING X570-PLUS (Wi-Fi) AM4 ATX Motherboard
ASUS Gaming X570-Plus Specs
CPU
| Chipset | AMD X570 |
| CPU Socket | AM4 |
Back Panel I/O
| USB | 4 x USB 3.1 / USB 3.2 Gen 1 Type-A 2 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-C |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1 x HDMI 1.4b |
| Audio | 5 x 3.5 mm 1 x S/PDIF |
| Ethernet / Controller | 1 x Realtek L8200A Gigabit |
| PS/2 | 1 x PS/2 |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 4400 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
Storage Expansion
| SATA | 8 x SATA III |
| M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA III) |
| U.2 | None |
| RAID Support | RAID 0, 1, 10 |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x1 |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port) 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Air Cooling | 1 x 4-Pin CPU 1 x 4-Pin Assistant 3 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 4-Pin CPU |
| Security | TPM Module |
| LED Header | 3 x RGB |
| Audio | None |
| Diagnostics | Clear CMOS |
| Legacy | 1 x Serial |
BIOS
| ROM | 256 Mb |
Front Panel I/O
| I/O Connection Headers | AAFP |
Audio
| Audio Codec | Realtek ALC S1200A (8-Channel) |
Wireless
| Bluetooth | 5.0 |
| Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) |
| Module Support | 1 E Key M.2 |
Software
| Supported Operating Systems | Windows 10 (64-Bit) |
Physical
| Form Factor | ATX |
| Dimensions | 9.6 x 12" / 243.84 x 304.80 mm |
Packaging Info
| Package Weight | 3.4 lb |
| Box Dimensions (LxWxH) | 13.7 x 10.12 x 2.1" |
