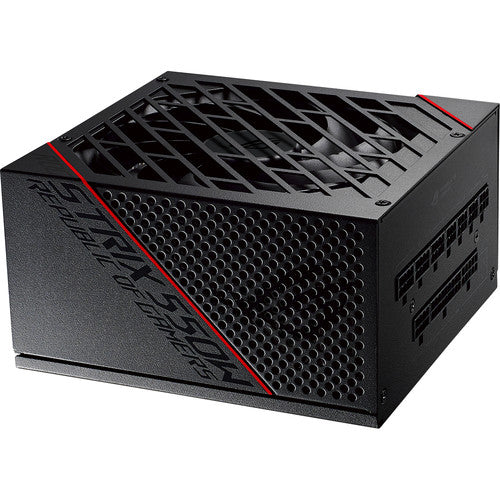

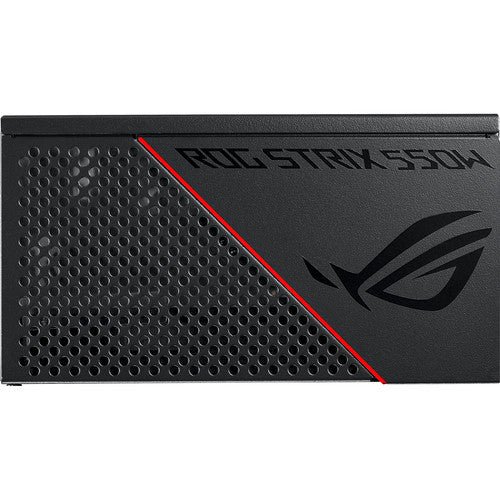

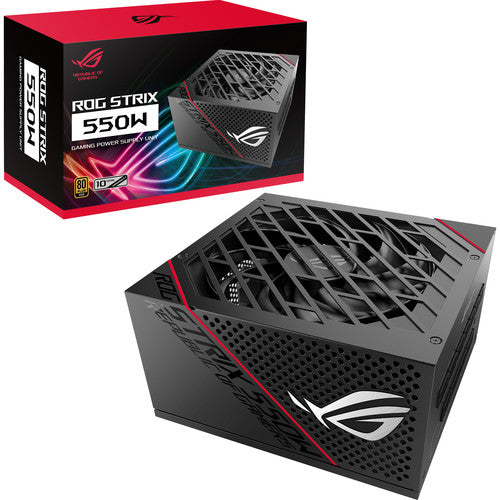

ASUS Republic of Gamers Strix 550W 80 Plus Gold Power Supply
ASUS ROG STRIX 550G Specs
Connectivity
| Total Connectors | 1 x 20+4-Pin ATX Motherboard 2 x 4+4-Pin EPS CPU 2 x 6+2-Pin PCIe 8 x 15-Pin SATA 3 x 4-Pin Peripheral / Molex |
| Cable Design | Modular |
Electrical
| Total Wattage | 550 W |
| Number of +12 V Rails | 1 |
| Max Load for +12 V | 45 A |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for -12 V | 0.3 A |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
General
| Efficiency Rating | 80 PLUS Gold |
Cooling
| Fan Size | 135 mm |
| Bearing Type | Ball |
Physical
| Form Factor | ATX |
| Compliance | ATX 12 V |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Certifications | RoHS, as per Manufacturer |
| Dimensions | 6.3 x 5.91 x 3.39" / 16 x 15 x 8.6 cm |
| Weight | 3.81 lb / 1.73 kg |
Packaging Info
| Package Weight | 6.69 lb |
| Box Dimensions (LxWxH) | 12.3 x 7.3 x 4.6" |
