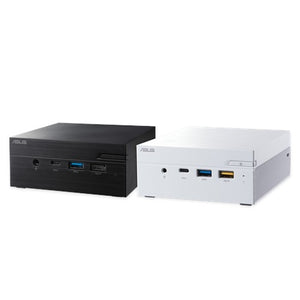

ASUS PN40 (Intel Celeron J4005)
|
Model and Spec Summary |
PN40 (with fan) (Celeron 8th Gen/ 4GB/ 128GB M.2 SSD/ Wired KBMS/ VESA/ 802.11ac/ Win10 PRO/ ASUS Control Center/ VGA Port) |
|
| Model Name | PN40-BC652ZV | |
| Part # | 90MS0181-M06520 | |
| CPU Generation & Platform | 8th Gen (Gemini Lake) | |
| CPU | Intel® Celeron® J4005 (4M, 2 Core, 2.00GHz up to 2.70GHz) |
|
| Chipset | Integrated | |
| Memory | 4GB DDR4 2400MHz SO-DIMM (4GB x 1pc) (2GB up to 8GB) |
|
| SO-DIMM Slot | 2 x SO-DIMM slots | |
|
Storage
|
128GB M.2 2280 SSD (SATA) *supports NVMe |
|
|
Supports 1 x eMMC SSD (up to 64GB); OR 1 x 2.5" storage HDD (up to 1TB) + 1 x M.2 2280 SSD PCIe/SATA (up to 256GB)* *Optional storage must confirmed SKU before configuring |
||
| Graphics | Integrated - Intel® UHD Graphics 600 | |
|
Networking
|
LAN | 10/100/1000Mbps |
| Wireless | Intel® 9461 802.11ac, 1x1 Bluetooth V5.0 |
|
|
Audio
|
Codec | REALTEK® ALC3236-VB2 Codec, 2 Channel |
| Internal Speaker | N/A | |
| VESA Mounting Kit | YES | |
| Card Reader | N/A | |
|
Interface
(I/O Ports) |
Front |
1 x USB 3.1 Gen1 Type C 1 x USB 3.1 Gen1 Type-A 1 x USB 2.0 (support Battery Charger 1.2) 1 x Audio (Line out/ Mic in/ Headphone out) |
| Side | 1 x Kensington slot | |
| Rear |
2 x USB 3.1 Gen1 Type-A 1 x HDMI 2.0 1 x Mini-DisplayPort ++ 1.2 1 x VGA Port (COM port option)* 1 x RJ45 LAN 1 x DC-in *default VGA port; optional ports must be confirmed before configuring |
|
| Support Ultra HD 4K | YES | |
| Dual or Multiple LCD Support |
up to 2 LCD Support *via HDMI+Mini DP; or HDMI+VGA Configuable port |
|
| ODD | N/A | |
| COM Port | OPTIONAL (CTO from factory) |
|
| TPM Onboard | OPTIONAL (fTPM 2.0 or TPM 2.0 chip) |
|
| Color | Black | |
| OS | Win 10 PRO M12 | |
| Dimensions (WxDxH) | 115 x 115 x 49 mm (0.62L) | |
| Power Supply | 65W Power Adapter | |
|
Peripherals & Accessories
|
Wired Keyboard + Mouse | |
|
1 x VESA Mount Kit 1 x AC Adapter 1 x Quick Start Guide w/ ACC Activation Key 1 x Warranty Card 1 x Quick Start Guide |
||
| Warranty | 3-years, carry-in | |
