ASUS PB60 (Core i5 - 8th gen)
|
Model and Spec Summary |
PB60 (Core-i5 8th Gen/ 8GB/ 1TB 2.5" HDD 7200RPM/ Wired KBMS/ VESA/ 802.11ac/ Win10 PRO/ ASUS Control Center/ VGA Port) |
|
| Model Name | PB60-B5352ZV | |
| Part # | 90MS01E1-M03530 | |
| CPU Generation & Platform | 8th Gen (Coffee Lake) | |
| CPU | Intel® Core™ i5-8400T (9M, 6 Core, 1.70GHz up to 3.30GHz) |
|
| Chipset | Intel® B360 | |
| Memory | 8GB DDR4 2400MHz SO-DIMM (8GB x 1pc) (4GB up to 32GB) |
|
| SO-DIMM Slot | 2 x SO-DIMM slots | |
|
Storage
|
1TB 7200RPM 2.5" HDD SATA 6Gb/s *supports NVMe SSD |
|
|
Supports up to 1 x 2.5" HDD (up to 1TB) + 1 x M.2 2280 SSD PCIe G3X4/SATA (up to 256GB)* *Optional storage must confirmed SKU before configuring |
||
| Graphics | Integrated-Intel® UHD Graphics | |
|
Networking
|
LAN | Intel® 10/100/1000 Mbps |
| Wireless | Intel® 9560 802.11ac, 2x2 Bluetooth V5.0 |
|
|
Audio
|
Codec | REALTEK® ALC3236 Codec, 2 Channel |
| Internal Speaker | OPTIONAL (1W speaker) |
|
| VESA Mounting Kit | YES | |
| Card Reader | N/A | |
|
Interface
(I/O Ports) |

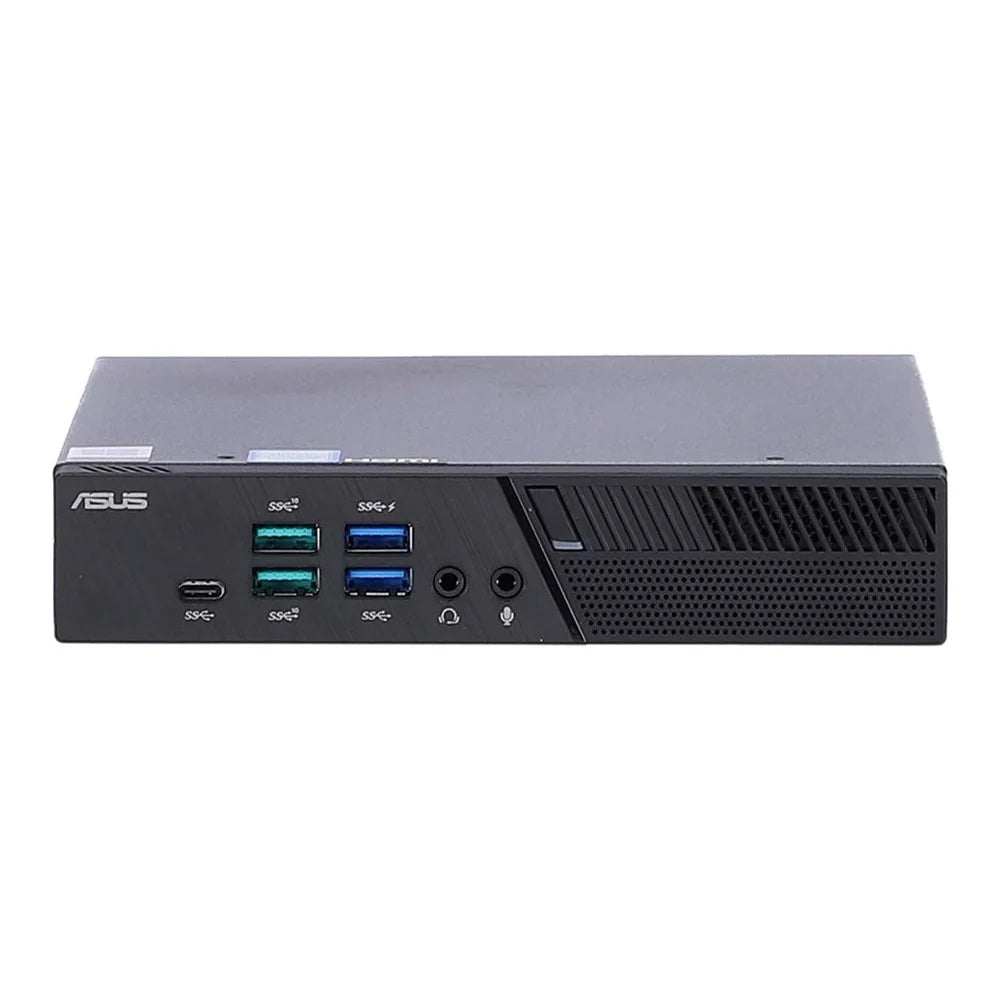

Front |
1 x USB 3.1 Gen1 Type-C 2 x USB 3.1 Gen2 Type-A 2 x USB 3.1 Gen1 Type-A (1 x Quick Charge) 1 x Audio Jack 1 x Mic in Jack |
| Side | N/A | |

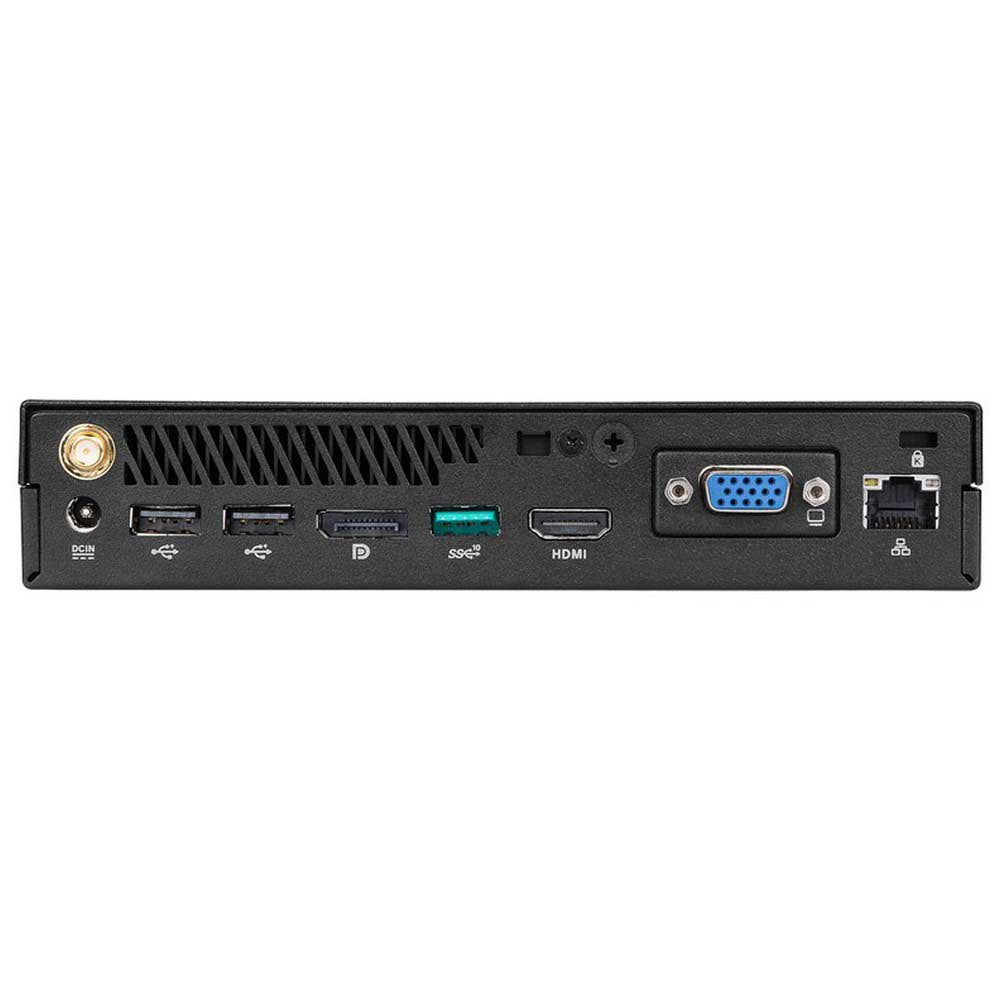

| Rear |
1 x USB 3.1 Gen2 Type-A 2 x USB 2.0 1 x HDMI 2.0 1 x DisplayPort 1.2 1 x VGA Port (COM/DP1.2 port option)* 1 x RJ45 LAN Port 1 x External WiFi Antenna Port 1 x Kensington slot 1 x DC-in *default VGA port; optional ports must be confirmed before configuring |
|
| Support Ultra HD 4K | YES | |
| Dual or Multiple LCD Support |
up to 3 LCD Support *via HDMI+DP+VGA; or HDMI+DP+DP Configurable port; or HDMI+DP+Daisy Chain; or DP Configurable port+Daisy Chain (x2) |
|
| ODD | OPTIONAL (CTO from factory) |
|
| COM Port | OPTIONAL (CTO from factory) |
|
| TPM Onboard | OPTIONAL (fTPM or TPM chip) |
|
| Color | Black | |
| OS | Win 10 PRO M12 | |
| Dimensions (WxDxH) | 175 x 175 x 34.2 mm (1.05L) | |
| Power Supply | 65W Power Supply | |
|
Peripherals & Accessories
|
Wired Keyboard + Mouse | |
|
1 x VESA Mount Kit 1 x Stand 1 x AC Adapter 1 x Quick Start Guide w/ ACC Activation Key 1 x Warranty Card 1 x Quick Start Guide |
||
| Warranty | 3-years, carry-in | |
