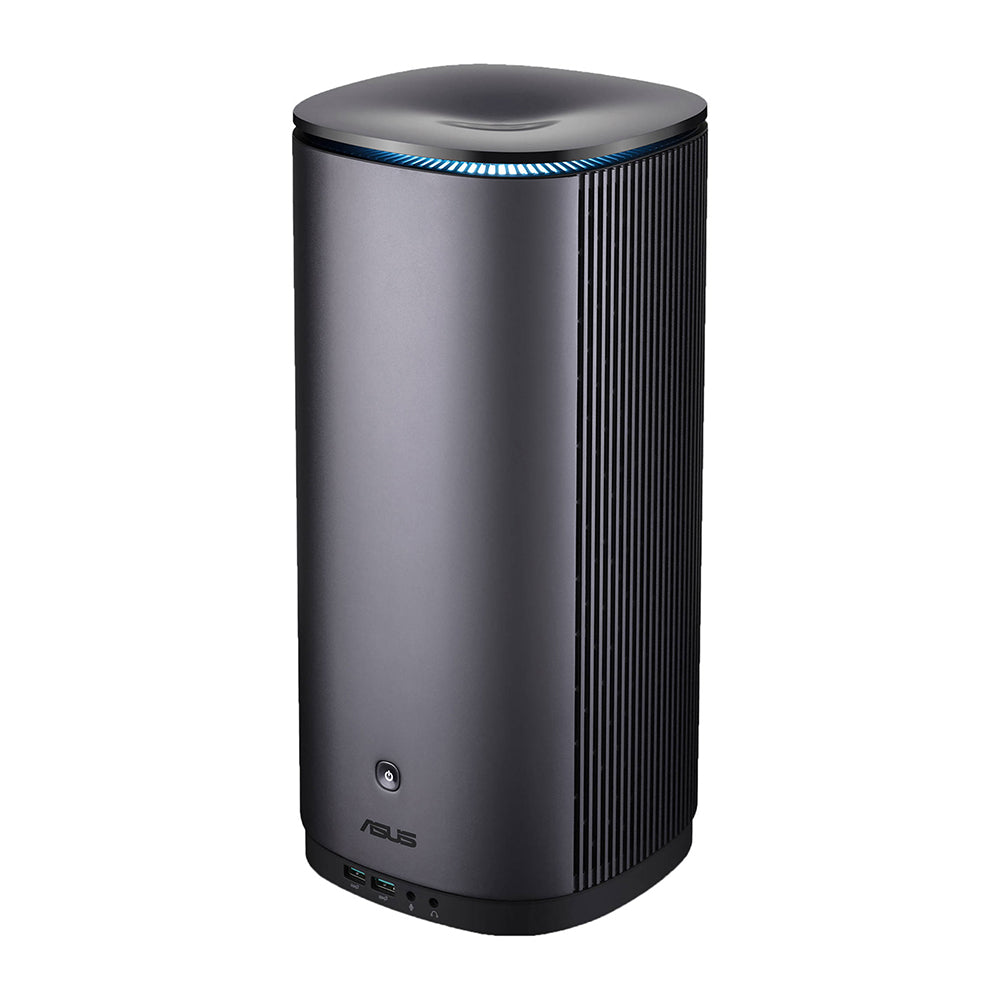

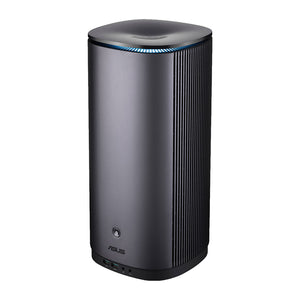

ASUS PA90 (Core i7 - 16GB RAM - Nvidia® GeForce® RTXTM 2060)
|
Model and Spec Summary |
PA90 (Core-i7 9th Gen K Series/ 16GB/ 1TB 2.5" HDD 7200RPM + 256GB M.2 SSD/ Nvidia® GeForce® RTXTM 2060/ Wired KBMS/ 802.11AX/ Win10 PRO) |
|
| Model Name | PA90-M7196ZN | |
| Part # | 90MS01J1-M01960 | |
| CPU Generation & Platform | 9th Gen (Coffee Lake) | |
| CPU | Intel® Core™ i7-9700K (12M, 8 Core, 3.60GHz up to 4.90GHz) |
|
| Chipset | Intel® Z390 | |
| Memory |
16GB DDR4 2666MHz SO-DIMM (8GB x 2pcs) (4GB up to 64GB) |
|
| SO-DIMM Slot | 4 x SO-DIMM slots | |
|
Storage
|
1TB 7200RPM 2.5" HDD SATA 6Gb/s + 256GB M.2 2280 SSD (PCIe) *supports Intel® Optane™ memory and SSD |
|
|
Supports up to 1 x 2.5" HDD (up to 1TB) + 2 x M.2 2242/2280 SSD PCIE G3X4/ SATA* *Optional storage must confirmed SKU before configuring |
||
| Graphics | Nvidia® GeForce® RTXTM 2060 6GB GDDR6 | |
|
Networking
|
LAN | Intel® 10/100/1000 Mbps |
| Wireless | Intel® 9560 802.11ac, 2x2 Bluetooth V5.0 |
|
|
Audio
|
Codec | REALTEK® ALC1220 Codec, 6-channel |
| Internal Speaker | N/A | |
| VESA Mounting Kit | N/A | |
| Card Reader | N/A | |
|
Interface
(I/O Ports) |

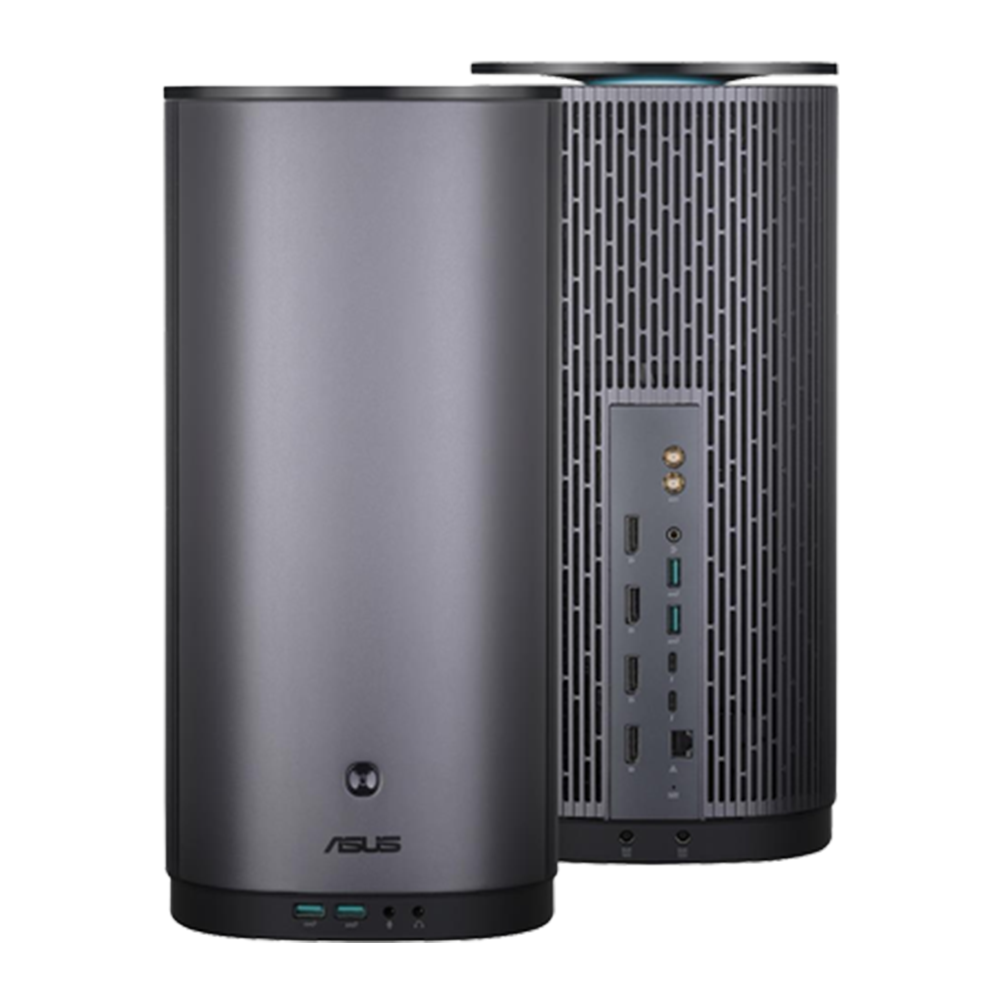

Front |
2 x USB 3.1 Gen2 Type-A 1 x Audio jack 1 x Mic in Jack |
| Side | N/A | |
| Rear |
2 x USB 3.1 Gen2 Type-A 2 x Thunderbolt® 3 (USB Type-C) 1 x RJ45 LAN Port 1 x Line-out 2 x Wi-Fi Antenna 2 x DC-in 2 x HDMI 2.0 1 x DisplayPort 1.4 |
|
| Support Ultra HD 4K | YES | |
| Dual or Multiple LCD Support |
up to 5 LCD Support *refer to OUTPUT RESOLUTION sheet for display configuration options |
|
| ODD | N/A | |
| COM Port | N/A | |
| TPM Onboard | OPTIONAL (fTPM 2.0 or TPM 2.0 chip) |
|
| Color | Midnight Blue | |
| OS | Win 10 PRO M12 | |
| Dimensions (WxDxH) | 176 x 176 x 365 mm (11.31L) | |
| Power Supply | 280W + 230W Power Supply | |
|
Peripherals & Accessories
|
Wired Keyboard + Mouse | |
| 2 x AC Adapter (280W + 230W) Power Cord 1 x Warranty Card 1 x Quick Start Guide |
||
| Warranty | 3-years, carry-in | |
