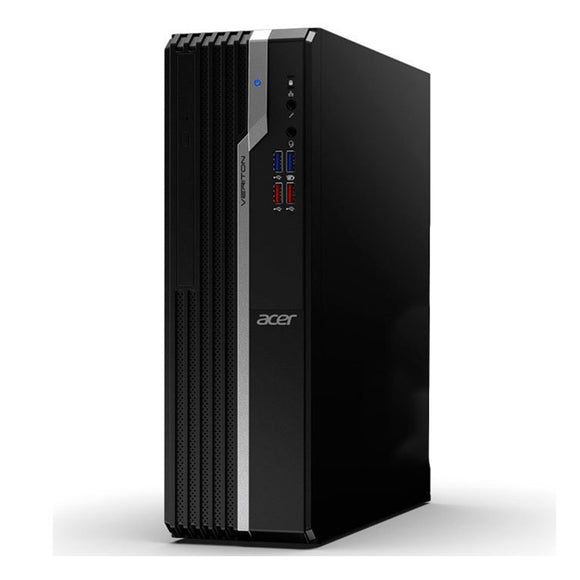

Acer Veriton X2660G Core i5-9400 9th Generation Windows 10 Pro
| Form Factor | 9L XSFF ( Extra Small Form Factor ) |
| Operating System | Windows 10 Pro 64-bit w/ ACM |
| Processor | Intel® Core™ i5-9400 Processor, 9M Cache (2.9GHz up to 4.10 GHz) 6c/6t |
| Chipset | Intel® B360 |
| Memory | 8GB DDR4 (1 x 8GB), upgradeable up to 64 GB of Dual-channel DDR4 2666 MHz |
| Hard Disk Drive | 128GB M.2 PCIe SSD + 1TB HDD 3.5in 7200RPM SATA3 4K |
| Graphics | Intel UHD Processor Graphics |
| Audio | Integrated high-definition, 5.1-channel surround sound |
| Networking | LAN: Gigabit Ethernet 10/100/1000 |
| Speaker | With Internal Speaker |
| Optical Drive | 8X DVD-RW drive, 9.0 mm slim, tray-load, M-DISC Ready™ |
| Card Reader | With Card Reader |
| Parallel Port | With Printer Port |
| Power Supply | 180w |
|
Standard I/O Ports
|
Front/Side I/O connectors
• Audio Jack(s): 2 • USB 3.1 Gen 1 port(s): 2 • USB 3.1 Gen 2 port(s): 2 • USB Type-C port(s): 2 Port 1 - USB 3.1 Gen 2 (up to 10 Gbps): 1 - USB charging 5 V; 3 A: 1 Port 2 - USB 3.1 Gen 2 (up to 10 Gbps): 1 Rear I/O connectors • D-Sub port(s): 1 • HDMI port(s): 1 • DisplayPort (DP) ports: 2 • COM port(s): 1 • Serial ports on board header (COM2): 1 • LAN port(s): 1 • PS/2 port(s): 2 • Audio Jack(s): 3 • USB 2.0 port(s): 4 |
|
Expansion Slot(s)
|
• Number of PCIe x16 slot(s): 2
• Number of PCIe x1 slot(s): 1 • Number of PCI slot(s): 1 • M.2 slot (for SSD): 1 • M.2 slot (for WLAN): 1 |
| Dimension | 102 (W) x 305.08 (D) x 332 (H) mm (4.02 x 12.01 x 13.07 inches) |
| Keyboard & Mouse | Acer USB Keyboard and Acer USB Optical Mouse |
| Warranty | 3-3-0 |
