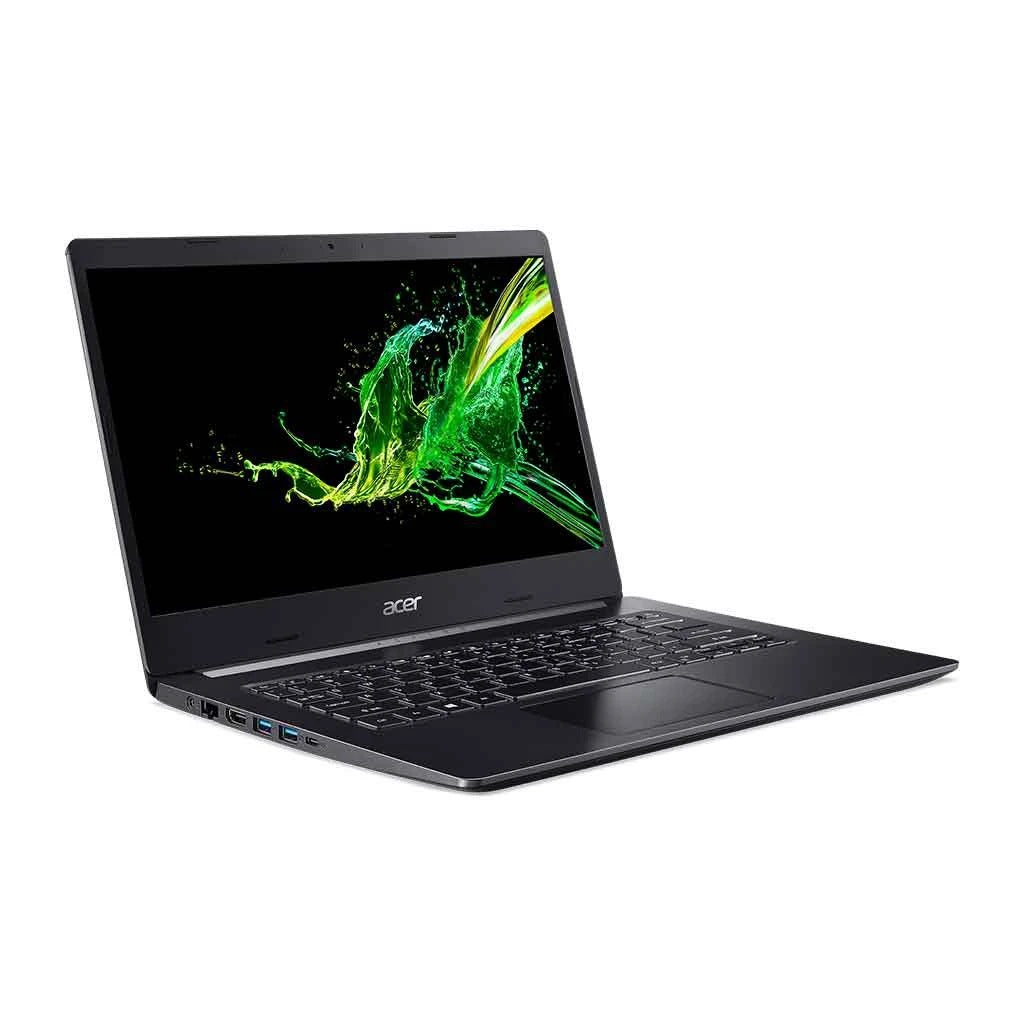

Acer Aspire 3 Notebook A314-22-R4U5/ A314-22-R8AX
| Marketing Name | Aspire 3 |
| Size | 14" |
| Category | Mainstream |
| Model | A314-22-R4U5/ A314-22-R8AX |
| Processor | AMD Ryzen™ 5 3500U quad-core processor (up to 2 MB L2 cache, up to 4 MB L3 cache, 2.1 GHz with Precision Boost up to 3.7 GHz) |
| Memory | 4 GB DDR4 system memory, upgradable of 12 GB of dual-channel DDR4 system memory using a single soDIMM module. |
| Memory Slots | 1 |
| Storage | 128GB SSD + 1 TB 2.5-inch 5400 RPM |
| M.2 Slot | 1 |
| Display Panel/ Resolution | 14.0" Full HD 1920 x 1080, high-brightness Acer ComfyView™ LEDbacklit TFT LCD 16:9 aspect ratio Ultra-slim design Mercury free, environment friendly |
| Graphics | AMD Radeon™ Vega 8 Mobile Graphics, supporting H.265/HEVC HW encode and decode, OpenCL™ 2.1, OpenGL® 4.6, Microsoft® DirectX® 12 |
| ODD | N/A |
| Network Connection | WLAN • 802.11a/b/g/n/ac wireless LAN • Operates at 2.4 GHz and 5 GHz • Intel® Dual Band Wireless-AC, 802.11ac/a/b/g/n 1X1 wireless LAN LAN • Gigabit Ethernet, Wake-on-LAN ready WPAN • Bluetooth® 4.2 • Bluetooth® 4.1 |
| Operating System | Windows 10 Home |
| Audio | Two built-in stereo speakers Built-in digital microphone |
| Dimensions | 328 (W) x 236 (D) x 19.9 (H) mm (12.91 x 9.29 x 0.78 inches) |
| Weight | 1.9 kg (4.19 lbs.) with 2-cell battery pack |
| Adapter | 3-pin 45 W AC adapter |
| Battery Type | 36.7 Wh 2-cell Li-ion battery |
| Battery Life | Up to 9.5 hours (based on MobileMark® 2014 test results) |
| Camera | Acer webcam with: • 640 x 480 resolution |
| Input/Output Ports | One USB 2.0/3.0 port 1 3.5 mm headphone/speaker jack, supporting headsets with built-in microphone HDMI® port with HDCP support Ethernet (RJ-45) port Two USB 3.2 Gen 1 ports |
| Bundled Accessory | N/A |
| Warranty | 2 Years Warranty |
| UPC | See Appendix A |
| EAN | See Appendix A |
| Box Dimension | 48.70 (W) 7.00 (D) 31.60 (H) cm |
| Weight with Box | 2.73 kg |
