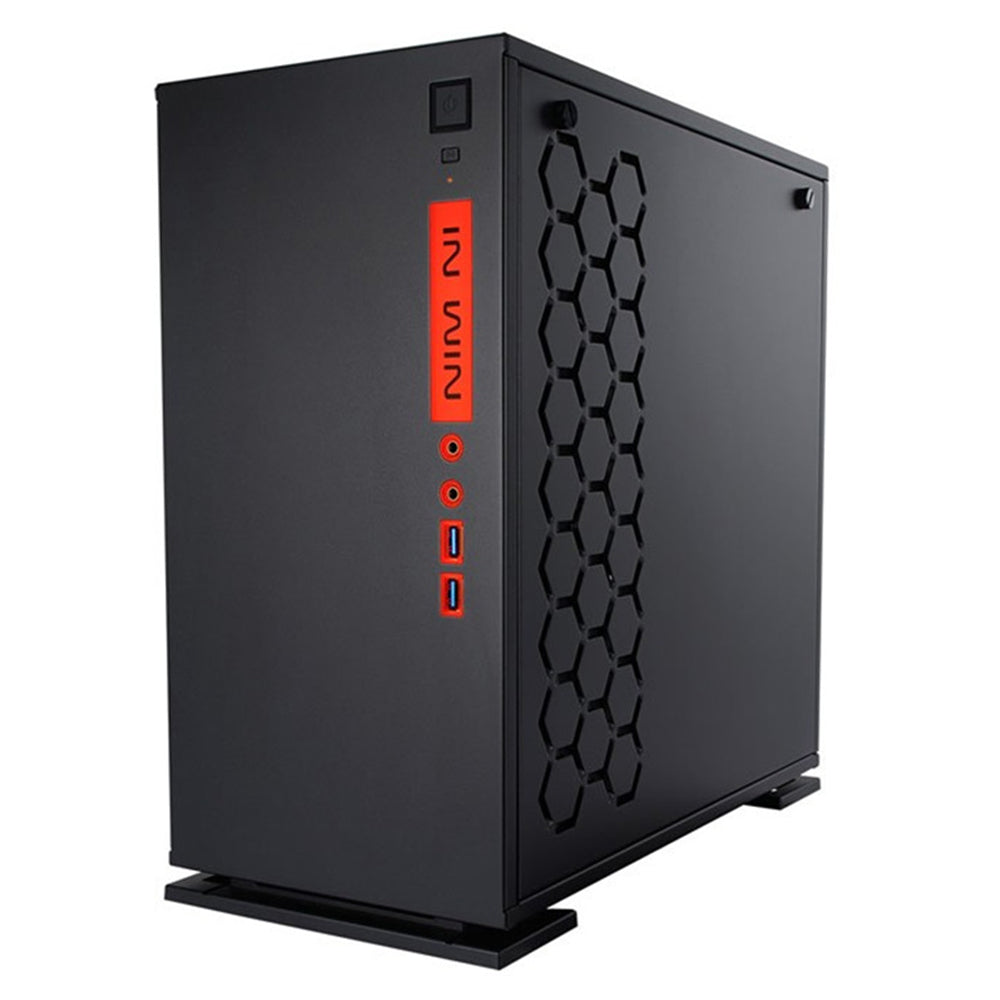

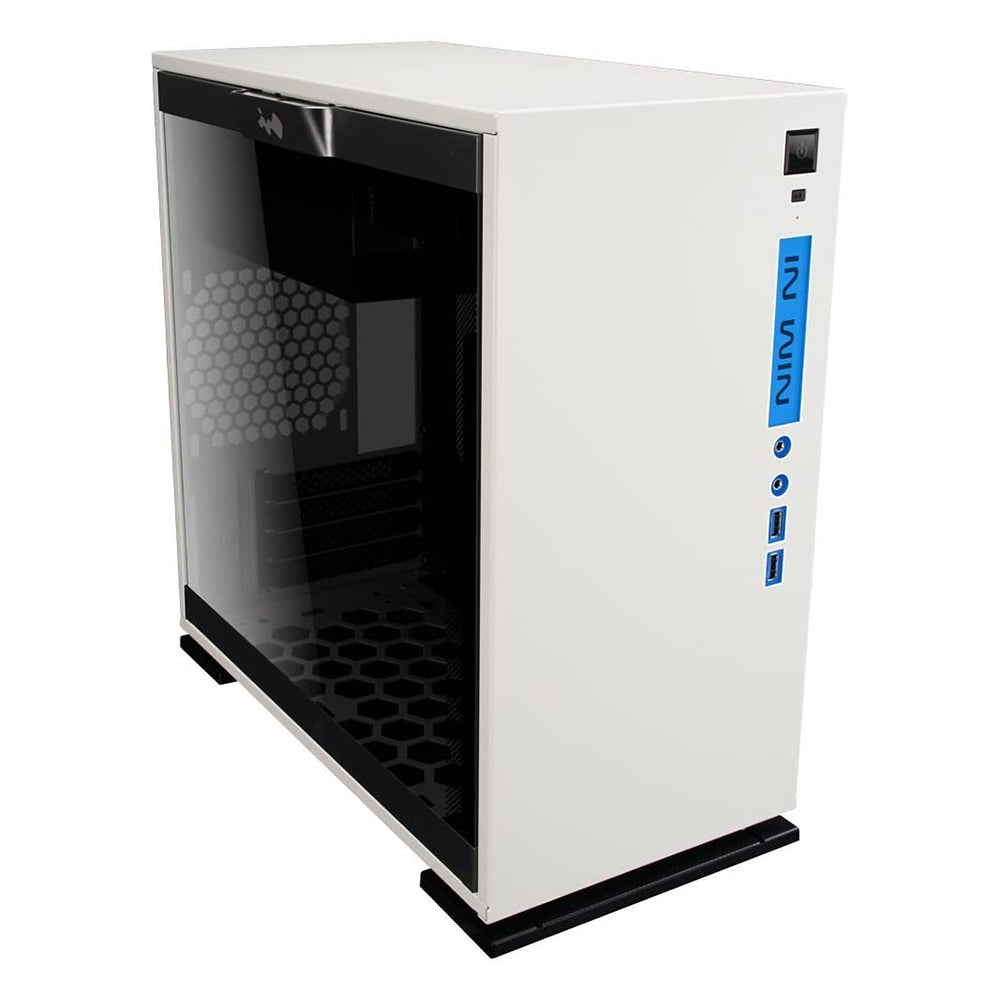

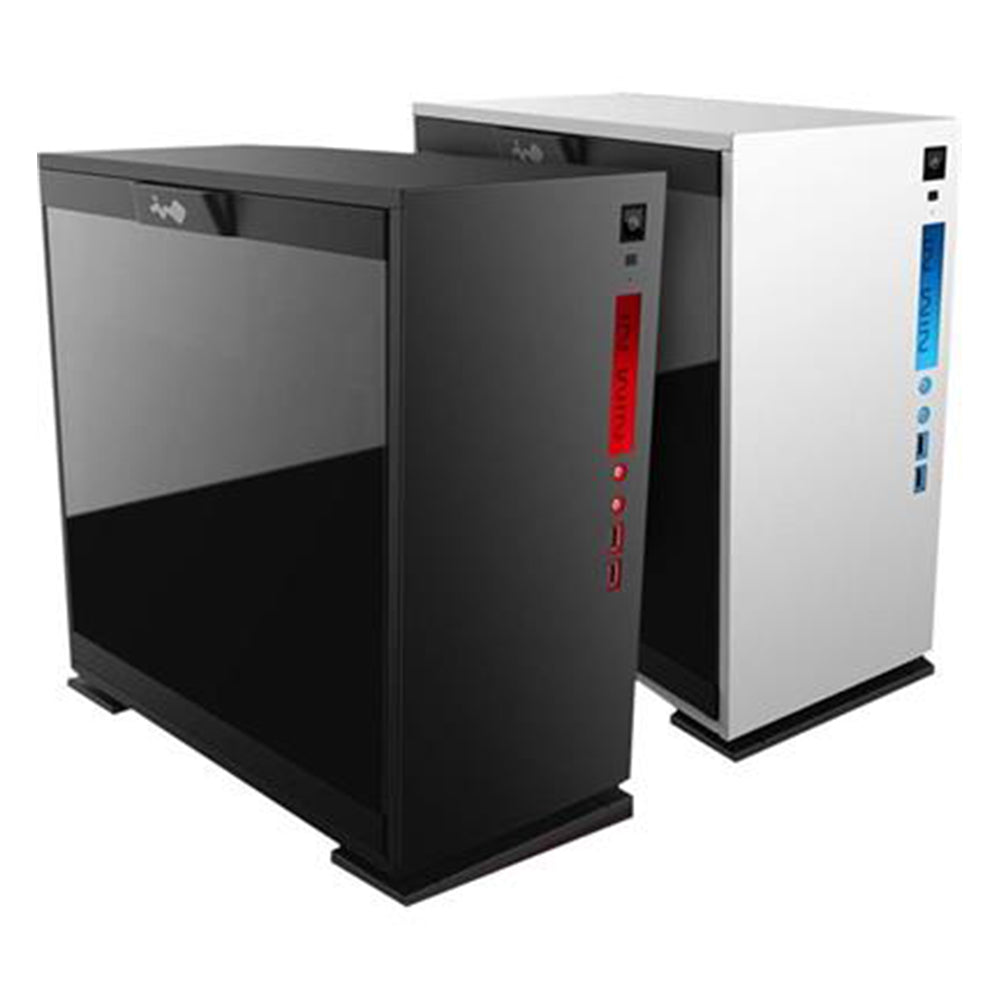

InWin 301 System Unit Chassis
|
Model
|
301
|
|
| Case Size | Mini Tower | |
| Material | Tempered Glass , SECC | |
|
M/B Form Factor
|
E-ATX | |
| ATX | ||
| Micro-ATX | ● ( 9.6”*9.6”) | |
| Mini-ITX | ● ( 6.7”*6.7”) | |
|
External Drive Bays
|
5.25" | |
| 3.5" | ||
|
Internal Drive Bays
|
5.25" |
1 x 3.5”/ 2.5”
2 x 2.5” |
| 3.5" | ||
| 3.5"/2.5" | ||
| 2.5" | ||
| Power Supply | ATX 12V / PSII | Length: 160mm Maximum |
| USB 3.0 / 2.0 |
2 x USB3.0 |
|
| HD Audio | ● | |
|
Thermal Solution
|
Air Cooling |
Supports
2 x 120mm Front Fan / 240mm Radiator 1 x 120mm Rear Fan / 120mm Radiator 2 x 120mm Bottom（Occupied a PCI-E slot） |
| Water Cooling | ||
| CPU Heatsink | Compatible: CPU die surface to side panel height: 158mm Maximum | |
| I/O Expansion Slots | PCI-E Slot x 4 Length: 330mm (Height: 162mm) Length: 265mm (With Fan + Radiator 35mm |
|
| Dimension(HxWxD) |
365mm x 208mm x 370mm (14.3” x 8.1” x 14.6”) |
|
